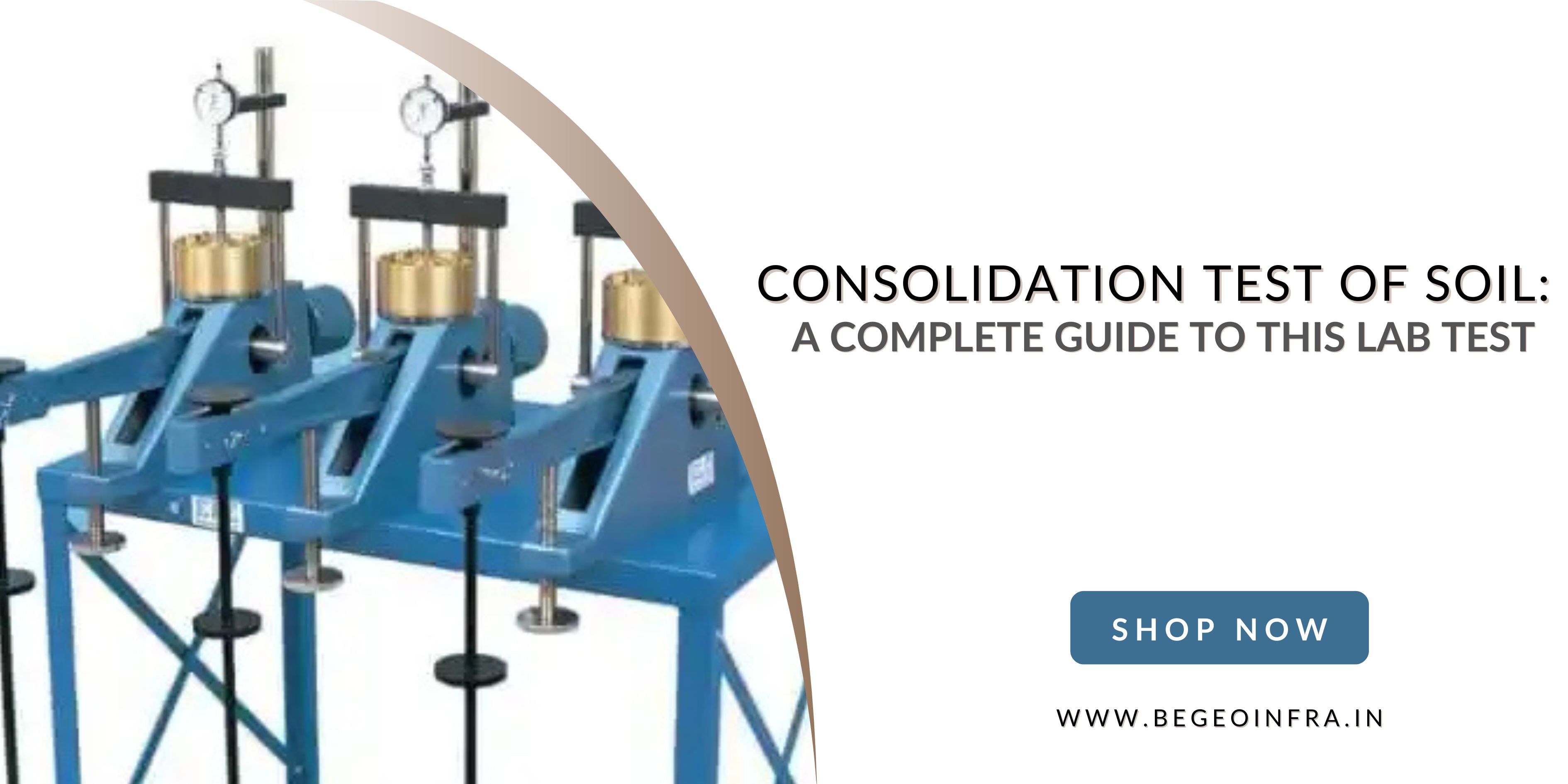

Consolidation Test of Soil: A Complete Guide to this Lab Test

Consolidation Test of Soil: A Complete Guide to this Lab Test

Understanding the consolidation test of soil is important for civil engineers, geotechnical experts, and construction professionals. This laboratory test helps evaluate how soil behaves under pressure over time, especially in foundations and embankments.

In this blog by Begeo Infra, we’ll simplify everything you need to know about the soil consolidation test—its purpose, procedure, types, and significance in geotechnical engineering. Whether you’re a student, engineer, or someone involved in construction, this user-friendly guide will help you understand the concept clearly.

What is the Consolidation Test of Soil?

The consolidation test of soil is a laboratory test used to determine how a soil sample compresses over time when subjected to a constant load. It simulates how soil behaves when it's buried under buildings or roadways.

In simple terms, the test checks how much water comes out of the soil and how much the soil compresses when pressure is applied slowly.

Why is the Soil Consolidation Test Important?

• Helps predict settlement of soil under structures



• Prevents future structural problems like cracks or tilting



• Essential for foundation design



• Used in the construction of highways, buildings, dams, and bridges



At Begeo Infra, we perform accurate and reliable laboratory testing services, including the consolidation test, to ensure your projects are built on strong, tested ground.

One-Dimensional Consolidation Test

The most commonly used test is the one-dimensional consolidation test. It is also called the oedometer test. This test assumes that the soil can only compress vertically and not sideways—just like how soil behaves under buildings.

In this test, a soil sample is placed in a ring and loaded from the top while preventing sideways movement. Water drains from the soil vertically during the test, and we measure how much the sample compresses.

Consolidation Test Procedure (Step-by-Step)

Here is a simplified explanation of the consolidation test procedure used in most labs:

1. Sample Preparation

• A cylindrical soil sample (usually 20 mm thick and 60 mm in diameter) is collected.



• It is placed in a metal ring without disturbing the soil structure.



2. Saturation

• The sample is saturated with water to mimic natural conditions.



• This step helps in understanding how pore water (water in the gaps) behaves under load.



3. Loading

• The sample is placed in an oedometer device.



• Loads are applied in stages—usually doubling each time (e.g., 0.05, 0.1, 0.2, 0.4 kg/cm², etc.).



• Each load is maintained for 24 hours or until compression stops.



4. Measurement

• The vertical compression (settlement) of the soil is recorded at regular intervals.



• Data is used to calculate consolidation properties.



5. Unloading

• After all loads are applied, they are removed step-by-step.



• Rebound (expansion) of the soil is measured to assess elastic properties.



Important Terms You Should Know

• Primary Consolidation: Compression due to water being squeezed out of the soil.



• Secondary Consolidation: Slow compression after water is drained—due to rearrangement of soil particles.



• Compression Index (Cc): Shows how much the soil compresses under pressure.



• Coefficient of Consolidation (Cv): Indicates how fast the soil compresses.



At Begeo Infra, our lab experts calculate these values with precision to help design safe and durable structures.

Applications in Geotechnical Engineering

The consolidation test in geotechnical engineering plays a vital role in:

• Designing foundations for buildings and bridges



• Planning roadways and railway tracks



• Estimating the settlement time of soil



• Preventing structural failures caused by uneven settlement



• Assessing the suitability of soil for heavy constructions



Engineers use test results to decide if the soil is good to build on or if it needs improvement (like soil stabilization or preloading).

Advantages of the Consolidation Test

• Gives accurate prediction of soil settlement



• Saves money by preventing overdesign



• Ensures long-term safety of the structure



• Helps in selecting suitable construction methods



Limitations

• Time-consuming test (each load takes 24 hours or more)



• Only applicable to fine-grained soils (clay and silt)



• Assumes one-dimensional drainage, which may not match real site conditions



Why Choose Begeo Infra for Soil Testing?

At Begeo Infra, we offer professional laboratory testing services including:

• One-dimensional consolidation test



• Sieve analysis



• Atterberg limits



• Standard Proctor test



• Triaxial tests



We use advanced equipment, follow IS codes, and deliver fast, accurate results. Our geotechnical engineers ensure every soil test is performed with precision and proper documentation.

Final Words

The consolidation test of soil is essential for safe and smart construction. It tells you how much and how fast soil settles under load, helping you design foundations that last long and remain stable.

If you’re planning any construction project—small or large—don’t skip this vital step. Reach out to Begeo Infra for trusted and expert laboratory testing services. Our team will guide you with clear reports and practical recommendations.

Frequently Asked Questions

Q1. What is the purpose of the soil consolidation test?

To determine how much soil compresses over time under a given load, helping in predicting settlement of structures.

Q2. What type of soil is tested in a one-dimensional consolidation test?
Mainly fine-grained soils like clay and silt.

Q3. How long does the consolidation test take?
Usually 24 hours per load stage. The full test can take several days.

Q4. Can Begeo Infra provide consolidation test reports for government or commercial projects?
Yes, we offer standard and customized reports for all types of construction and infrastructure projects.
